Weekend

Choose Home Mode

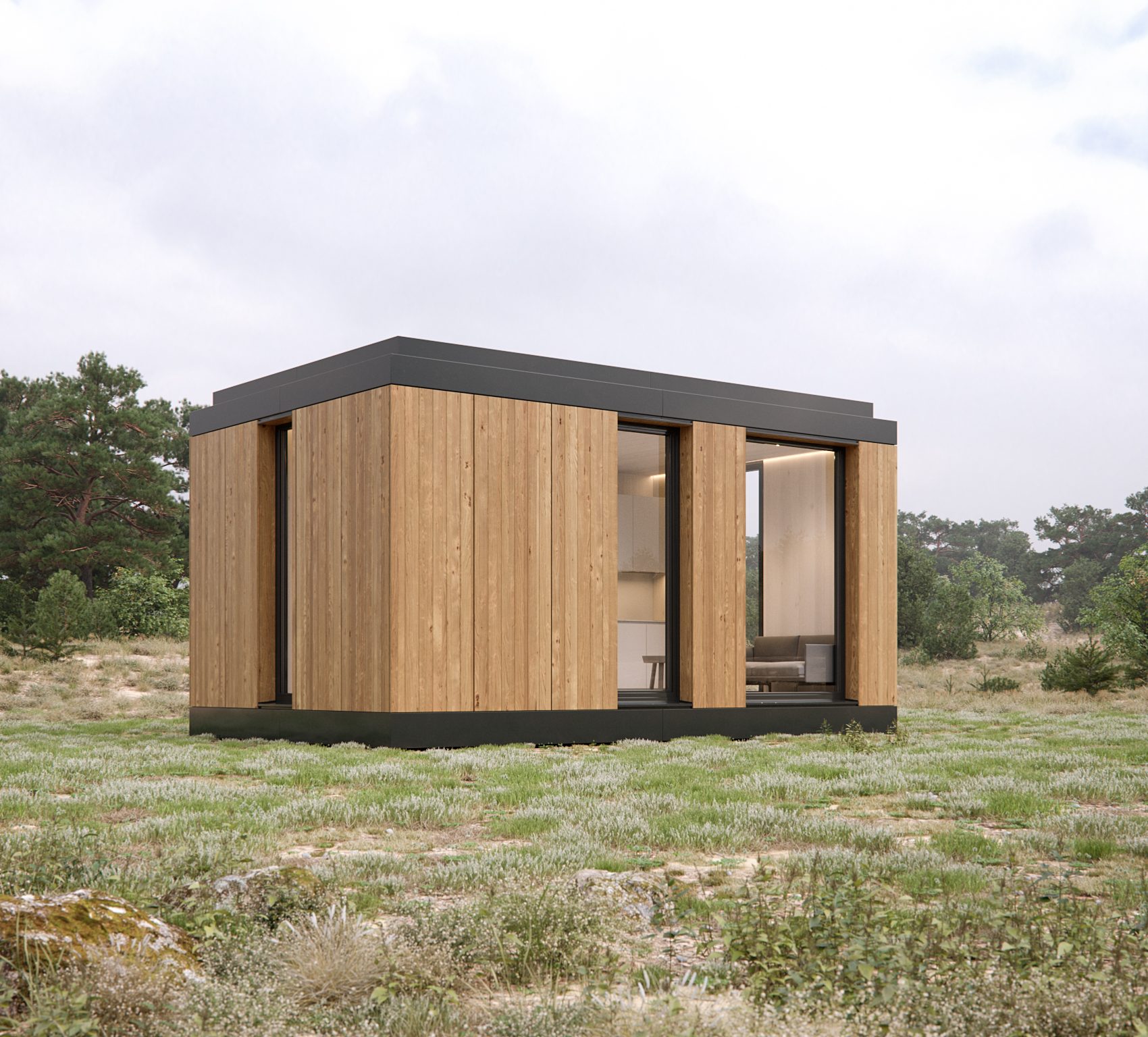

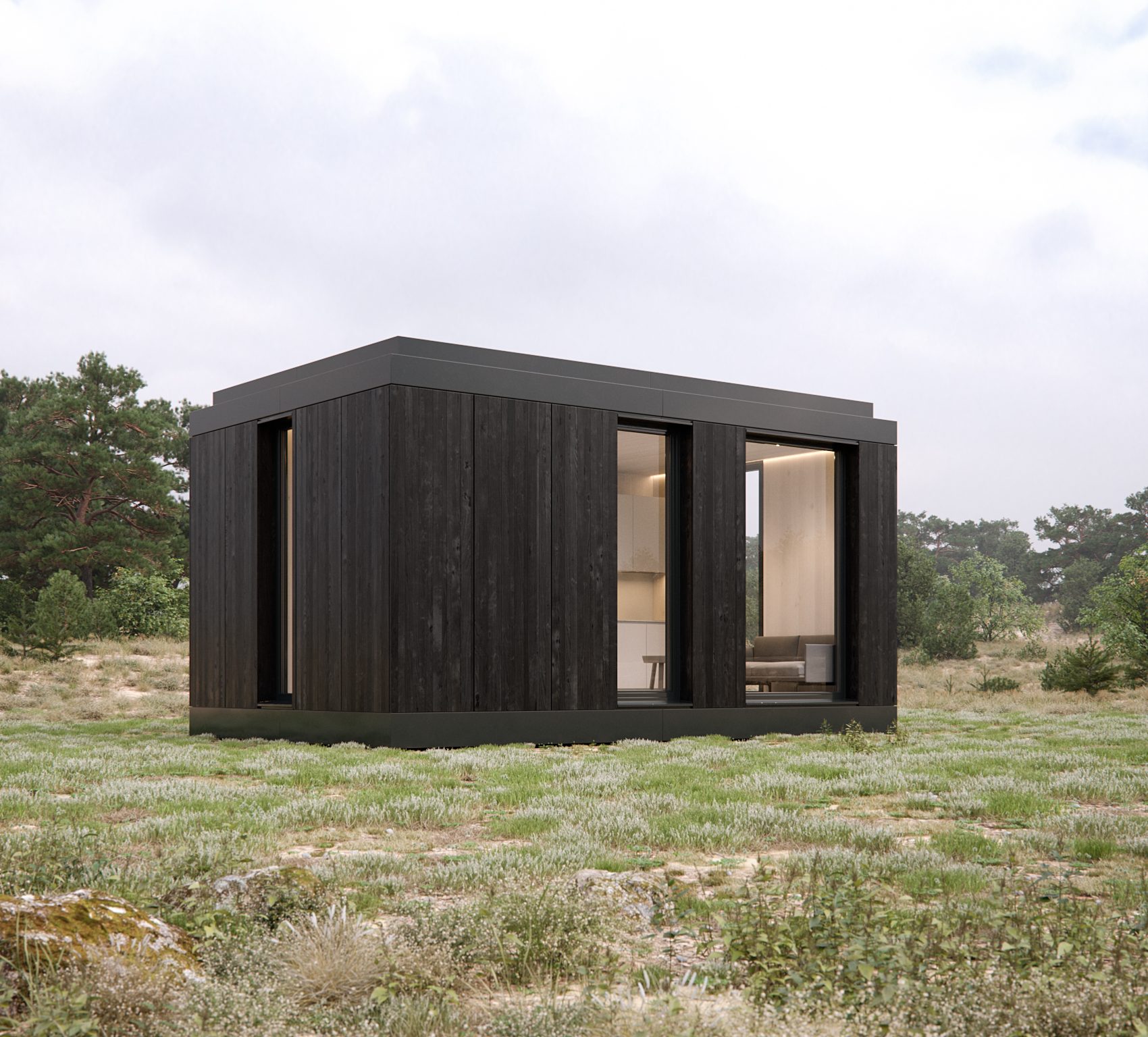

Ray Full Mode
€ 95 700
Learn more about materials

Main features

Simplicity and design

Structure

The main materials that are used in making this house are highest grade CLT (Cross Laminated Timber), Kingspan insulation and Firestone roof membrane. The house perfectly suits as holiday home or a residential dwelling in any climate. Even the tiniest joints are sealed to reduce cold air circulation leaving it to recuperators to exchange air inside. The concept is based on idea of a well designed, functional, modern house.

External Walls
  • CLT panels of 80mm, visual quality, sanded, treated with light oil
  • Kingspan insulation PIR panels 120 mm
  • Waterproof and wind barrier membrane
  • Ventilation laths
  • Thermally treated wood, water repellent oil
Internal Walls

Cross Laminated Timber panels of 60 mm, visual quality, sanded, treated with light oil deliver very modern look from a sustainable material.

Roof
  • CLT panels of 100 mm, visual quality, sanded, treated with light oil
  • Vapour barrier
  • 230-110 mm Kingspan insulation
  • Firestone waterproof membrane
Floor
  • Tiles and parquet or concrete as an upgrade
  • Floor heating
  • Kingspan thermal insulation
  • Waterproof membrane
  • Covering sheet (against insects and general protection)
Windows

Aluminum windows of triple glazing. High energy efficiency

Manta North Design Kitchen

Custom design kitchen with high quality surfaces, mechanisms and great functionality. Quartz top with design sink and mixer.

Standard appliances included in the offer – two ring cooktop, oven, extractor and a small fridge.

Light

Smart LED installed inside the cuts in CLT along living room, bedroom and toilet. Every house is equipped with smart kinetic switches which you can control with an app.

WC and Shower

Fully equipped and ready to use, design sink, mixer and lights.

Standard Equipment

Manta North is a fully functional Plug and Play solution includes:

  • Manta North Design bathroom – shower, toilet sink and mixer
  • Manta North Design kitchen
  • SMART lighting and heating system
  • Standard quality oak boards parquet
  • Ready to connect

Perfectly suited for immediate use!

Upgrades are available in upgrade section.

The outer dimensions: 6.25m x 4m x 3.7m
Inner dimensions: 5.75m x 3.5m x 2.7m
Total inside area: 20m2
Total outside area: 25m2

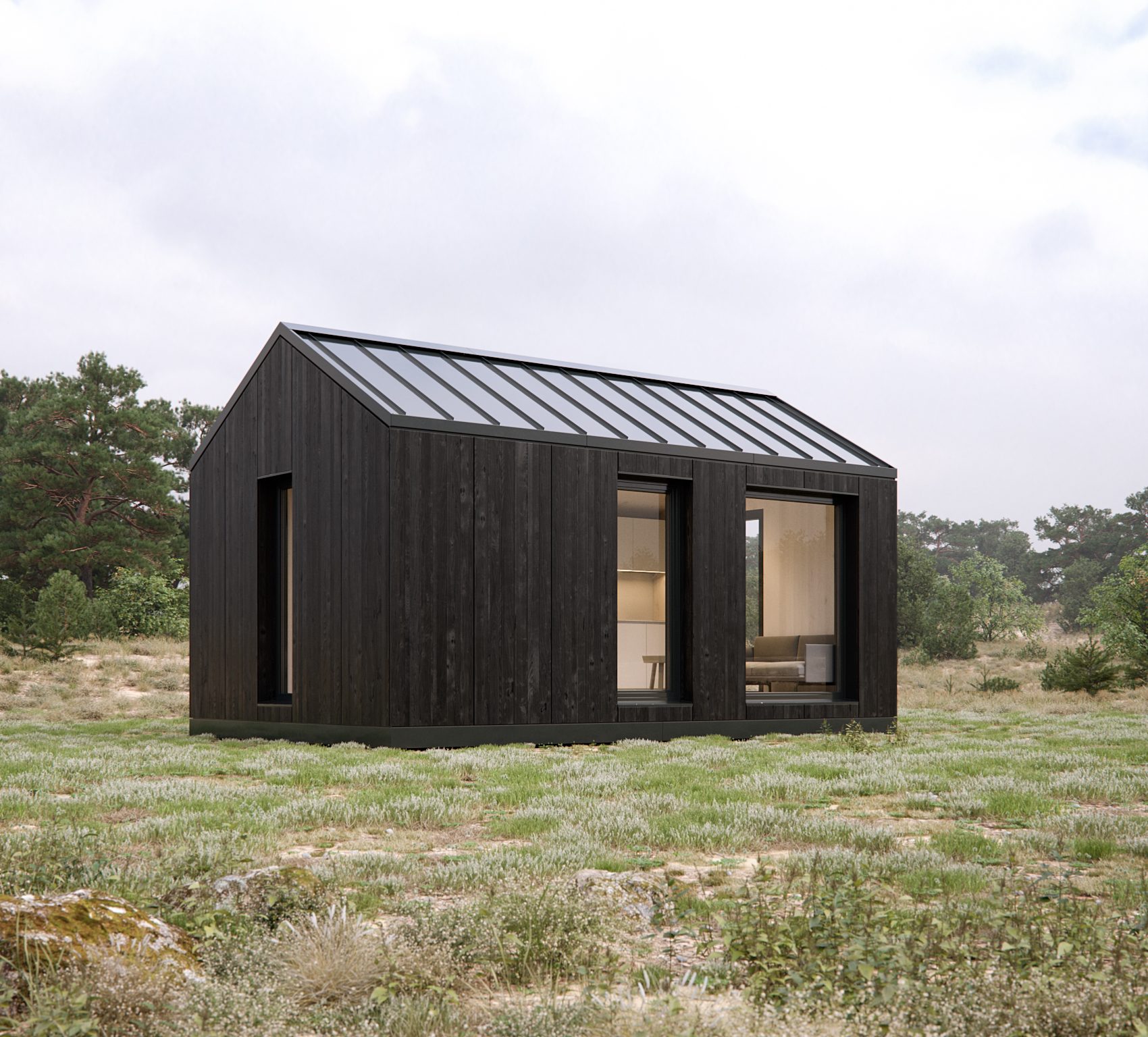

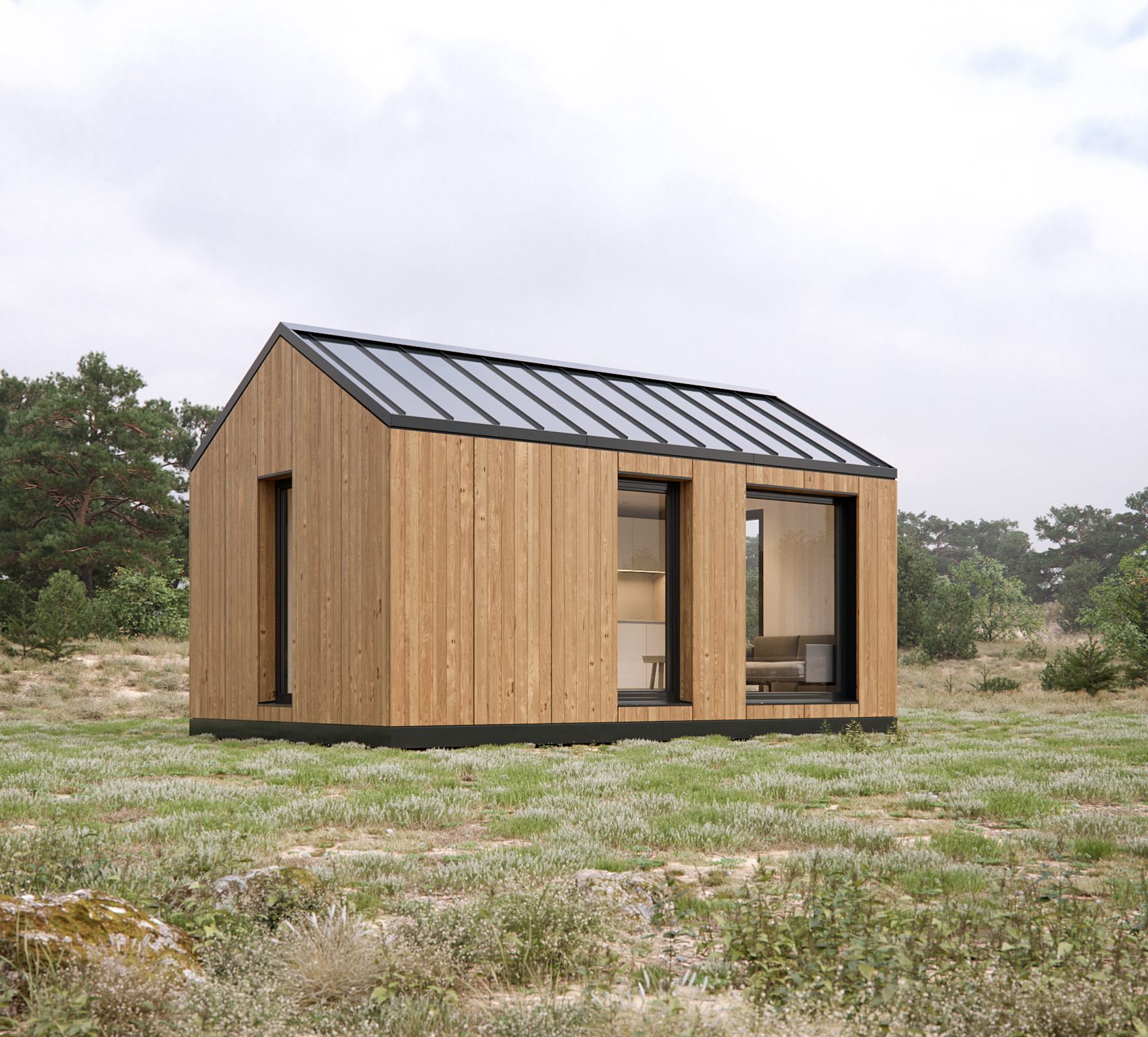

Slope Full Mode
€ 76 500
Learn more about materials

Main features

Structure

The main materials that are used in construction of this module are highest grade CLT (Cross Laminated Timber), Kingspan insulation and Firestone roof membrane. In this way the wall is thin enough to save some space inside and yet is structurally strong and well insulated meeting highest energy efficiency standards. The house perfectly suits as holiday home or a residential dwelling in any climate. Even the tiniest joints are sealed to reduce cold air circulation leaving it to recuperators to exchange air inside. The concept is based on idea of a well designed, functional, modern house.

External Walls
  • CLT panels of 80mm, visual quality, sanded, treated with light oil
  • Kingspan insulation PIR panels 120 mm
  • Waterproof and wind barrier membrane
  • Ventilation laths
  • Thermally treated wood, water repellent oil
Internal Walls

CLTimber panels of 60 mm, visual quality, sanded, treated with light oil.

Roof
  • CLT panels of 100 mm, visual quality, sanded, treated with light oil
  • Vapour barrier
  • 200 mm Kingspan insulation
  • Firestone waterproof membrane
Floor
  • Tiles and parquet (concrete optional)
  • Floor heating
  • Kingspan thermal insulation + mineral wool
  • Waterproof membrane
  • Covering sheet (against insects and general protection)
Windows

Aluminum windows of triple glazing. High energy efficiency

Light

Design ceiling lamps with SMART bulbs with extra wall lights in the corridor and bathroom. Every house is equipped with smart kinetic switches which you can control with an app.

WC and Shower

Fully equipped and ready to use.

Standard Equipment

Manta North is a fully functional Plug and Play solution includes:

  • Manta North Design bathroom – shower, toilet sink and mixer
  • Manta North Design kitchen
  • SMART lighting and heating system
  • Standard quality oak boards parquet
  • Ready to connect

Perfectly suited for immediate use!
Upgrade the Standard model with extra features.

The outer dimensions: 6.25m x 4m x 3.7m
Inner dimensions: 5.75m x 3.5m x 2.7m
Total inside area: 20m2
Total outside area: 25m2

Price
95 700

Including VAT 25%

Choose Your Floorplan

Full Weekend

Price
95 700

Including VAT 25%

Interior

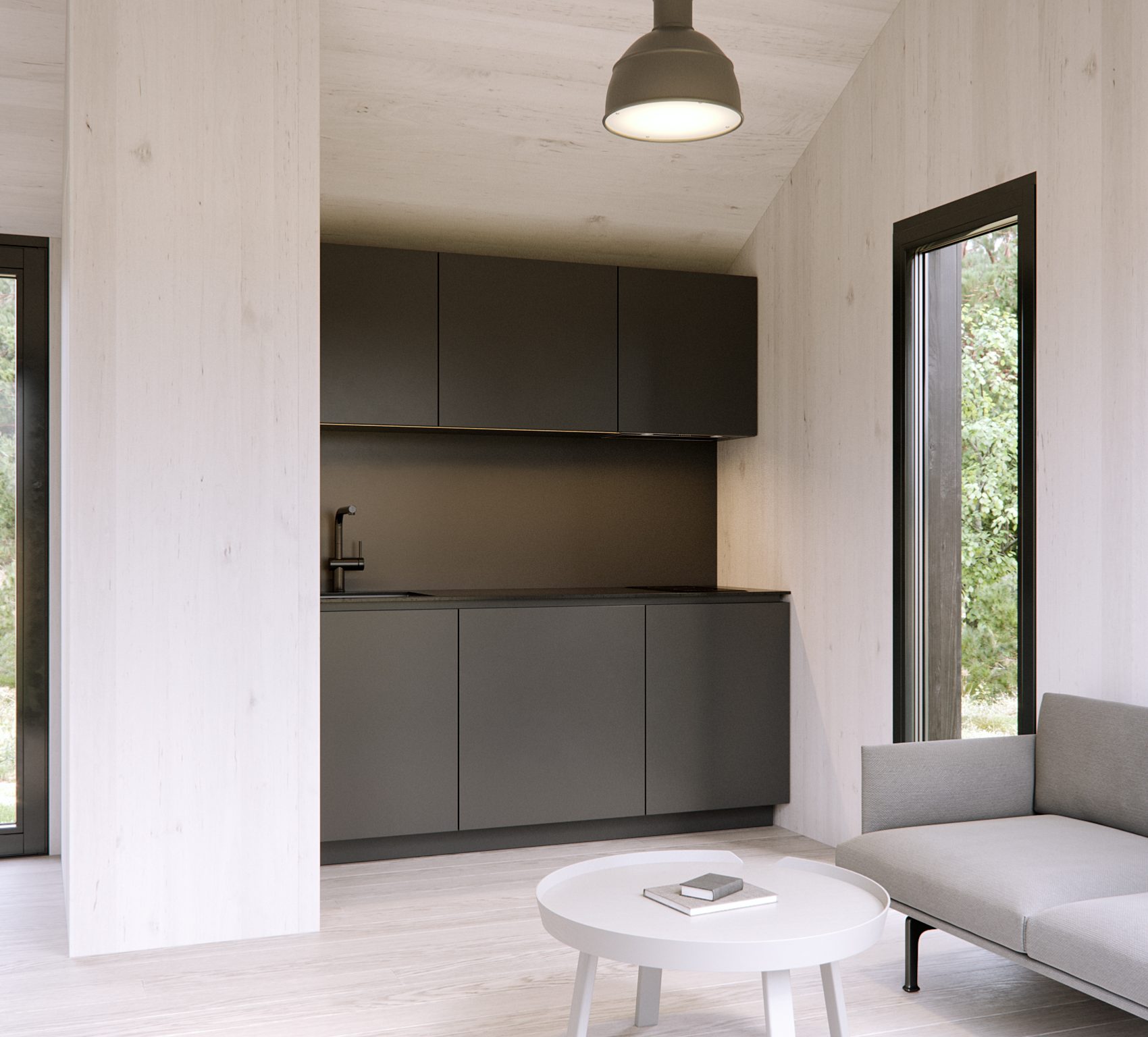

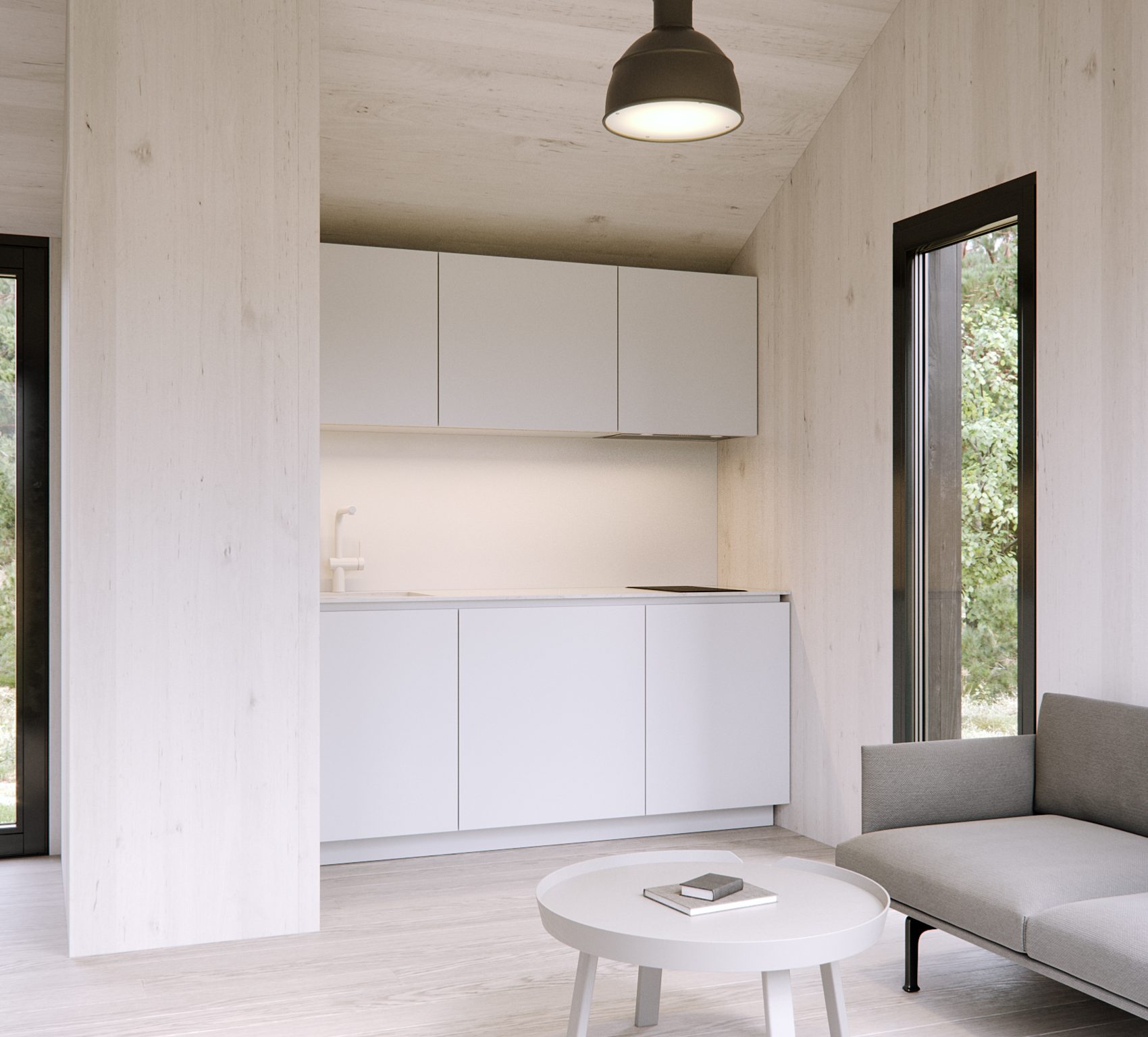

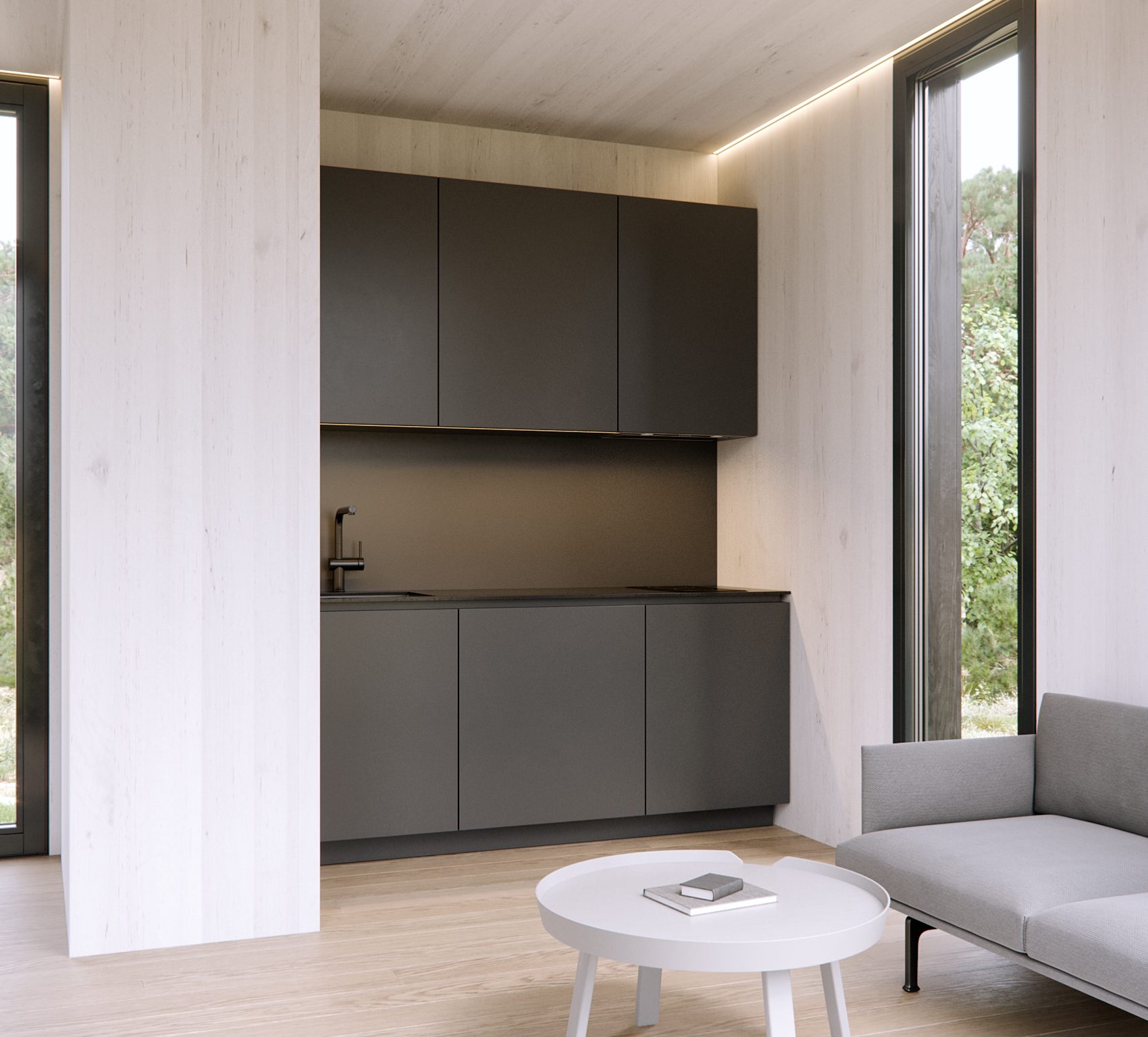

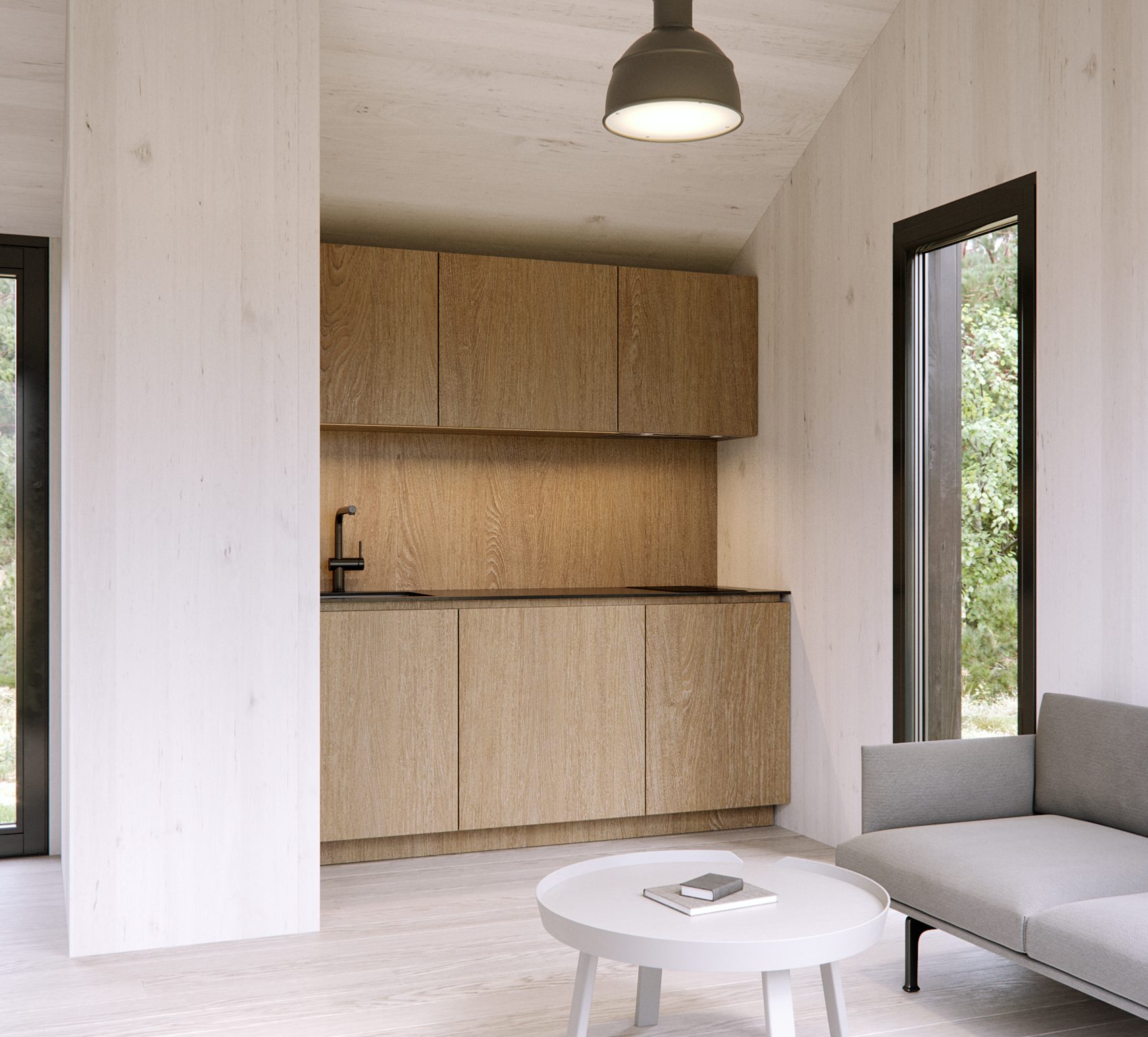

Kitchen
Floor

Clear White

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Ebony

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Polar white

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Price
95 700

Including VAT 25%

Exterior

Facade
Price
95 700

Including VAT 25%

Upgrades

Price
95 700

Including VAT 25%

Summary

Ray Full Mode
€ 95 700
Total
95 700

Including VAT 25%

Choose Your Floorplan

Full Weekend

Price
76 500

Interior

Kitchen
Lamps

Black

Made of soft silicon rubber this Scandinavian design lamp from Muuto will add to the interior and brighten the room.

Grey

Made of soft silicon rubber this Scandinavian design lamp from Muuto will add to the interior and brighten the room.



Olive

Made of soft silicon rubber this Scandinavian design lamp from Muuto will add to the interior and brighten the room.

Floor

Clear White

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Ebony

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Polar white

Oak board parquet. Top quality floor boards. It consists of two layers – oak and highest quality birch plywood. Surface coated with natural and hardwax oil.

Price
76 500

Exterior

Facade
Price
76 500

Upgrades

Price
76 500

Summary

Slope Full Mode
€ 76 500
Total
76 500
